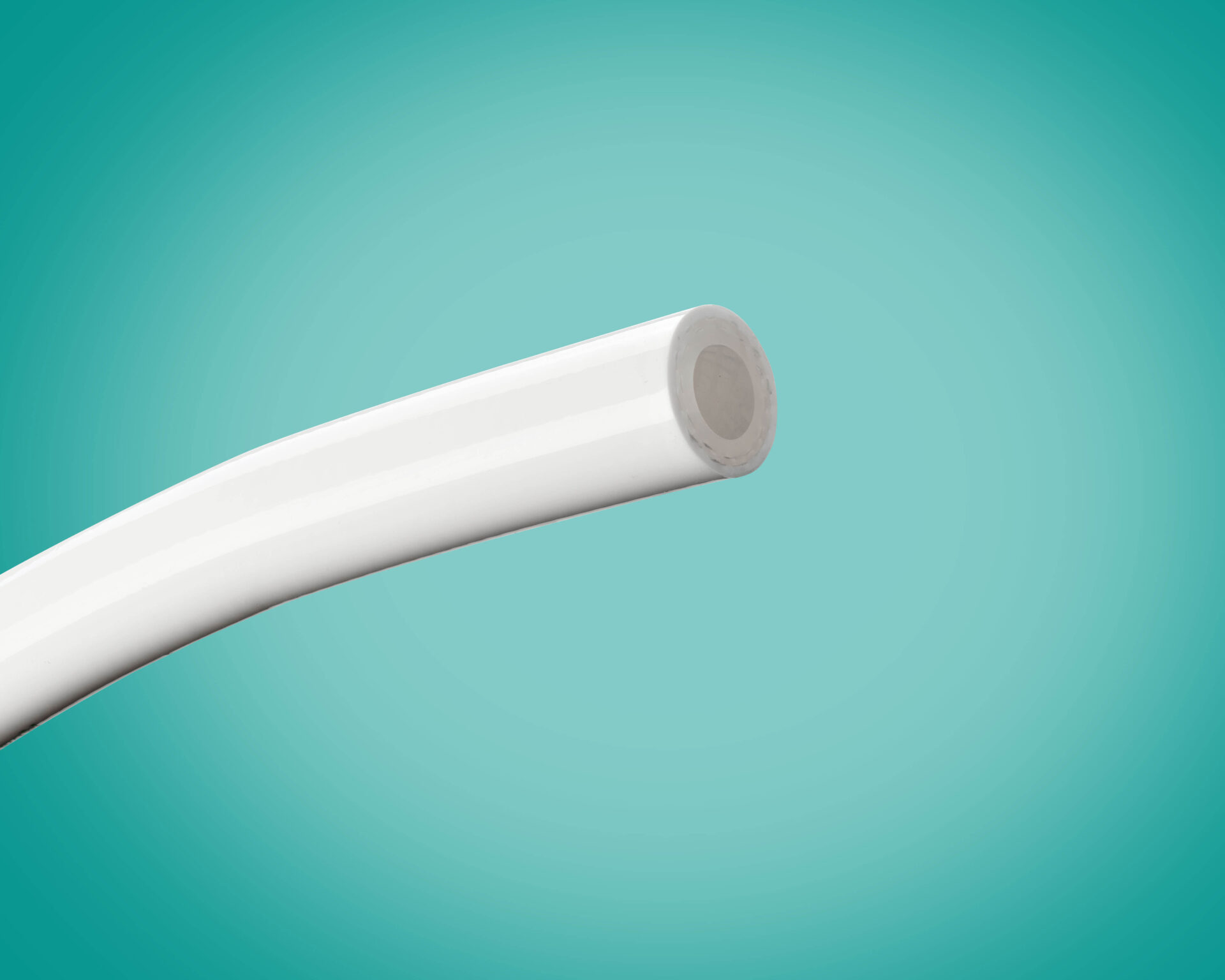

AdvantaSil® APSH-DB Double-Braided Reinforced Silicone Hose
Request Validation PackageDouble-braided reinforced platinum-cured silicone hose designed for high-pressure fluid transfer within the pharmaceutical and biopharmaceutical industries. Engineered for durability, flexibility, and purity, the APSH-DB hose ensures reliable performance in demanding environments, maintaining the integrity of your processes and products.
Offered as an alternative to mandrel wrapped silicone hose, AdvantaSil APSH-DB is more flexible for less kinking while maintaining comparable working pressures.
- Flexible material with improved bend radius over wire reinforced hose
- General temperature range -100°F to 400°F (-73.3°C to 204.4°C)
- Polyester double-braid reinforced for withstanding higher pressures and to increase resistance kinking
- Produced, assembled, and packaged in an ISO 7 cleanroom
- Custom lengths, sizes, and packaging available
- Security of supply chain with redundant manufacturing sites
- Available in various sizes and lengths, can be customized, and supplied with various fittings
- Manufactured with a focus on sustainability
- Comprehensive validation package to expedite qualification and validation
Full BPOG standardized extractables test results available on request
| ASTM Method | Value | |
|---|---|---|
| Durometer, Shore A | D2240 | 70 |
| Specific Gravity | D792 | 1.22 |
| Ultimate Tensile Strength, psi (MPa) | D412 | 1320 |
| Ultimate Elongation, % | D412 | 630 |
| Tensile Modulus @100%, psi (MPa) | D412 | 500 |
| Tear Strength, Die B, ppi (kN/M) | D624 | 320 |
| Compression Set, % | D395B | 20 |
NOTE: Testing based on liner only.
Available with validated sterility assurance of 10-6 via gamma irradiation per ISO 11137 method VDmax 25. A full sterility validation guide is available upon request.
NOTE: Testing based on liner only.
| Acids, Dilute / Weak | Test Before Using |
| Acids, Strong / Concentrated | Test Before Using |
| Bases, Dilute / Weak | Acceptable |
| Bases, Strong / Concentrated | Test Before Using |
| Salts | Acceptable |
| High Purity Water | Acceptable |
| Oil/Water Emulsion | Test Before Using |
| Alcohol | Test Before Using |
| Organic Solvent | Not Recommended |
- USP <665> Extractables/Leachables
- USP <87> Cytotoxicity MEM Elution
- USP <88> Class VI
- USP <85> Bacterial Endotoxin
- European Pharmacopeia 3.1.9
- ISO 10993-5 (Cytotoxicity, In Vitro)
- RoHS Compliant
- ADCF Compliant
| Autoclave | One-time cycle at 121°C, 30 min |
| Gamma Irradiation | One-time up to 40 kGy |
WARNING: APSH silicone hose should not be utilized in hot
oil or acid applications.
Options & Sizes
| Part Number | Catalog Number | I.D. | Wall | O.D. | Working Pressure at 70°F (21.1°C) | Burst Pressure at 70°F (21.1°C) | Bend Radius | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | in | mm | PSI | Bar | PSI | Bar | in | mm | ||
| A7140068 | APSH-DB-0500 | 0.500 | 12.70 | 0.195 | 4.95 | 0.890 | 22.60 | 600 | 41.36 | 600 | 41.36 | 2.5 | 63.50 |
| A7140094 | APSH-DB-0750 | 0.750 | 19.05 | 0.215 | 5.46 | 1.180 | 29.97 | 750 | 51.72 | 750 | 51.72 | 3.0 | 76.20 |
| A7140120 | APSH-DB-1000 | 1.000 | 25.40 | 0.215 | 5.46 | 1.430 | 36.32 | 500 | 34.48 | 500 | 34.48 | 3.5 | 88.90 |
Non-listed sizes and custom lengths are available by special order. Working pressures are calculated from burst testing using a 3:1 safety factor. Application testing is recommended.
Custom lengths, a variety of colored jackets (AdvantaLabel), 316L stainless steel sanitary fittings, hose assemblies, and packaging available. Coils are supplied double bagged in heat-sealed polybags and bulk placed. Contact your AdvantaPure sales representative for other packaging options.
When products are used as part of an assembly, the pressure ratings of fittings may be less than hose pressure ratings above. Please consult with your sales representative.
NOTE: The data listed throughout this datasheet is meant only as a guide to aid in the design and is believed to be reliable; however, nothing stated shall constitute a guarantee or warranty for any application. Product field testing should be performed to find the actual values for a specific application.
