AdvantaSil® APSW-SP, APSW-SPC, Platinum Cured, Wire-Reinforced Hose – Smooth or Convoluted O.D.

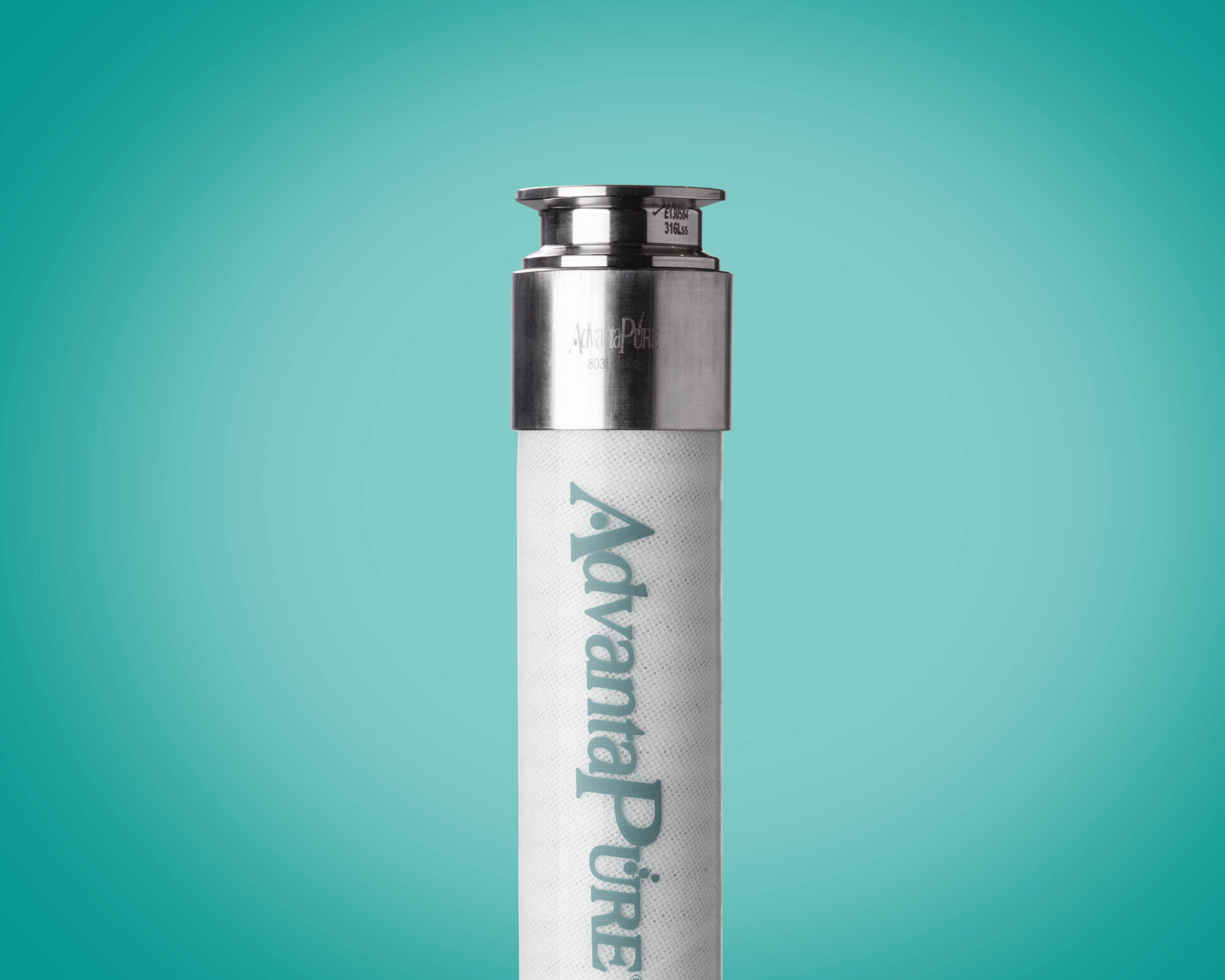

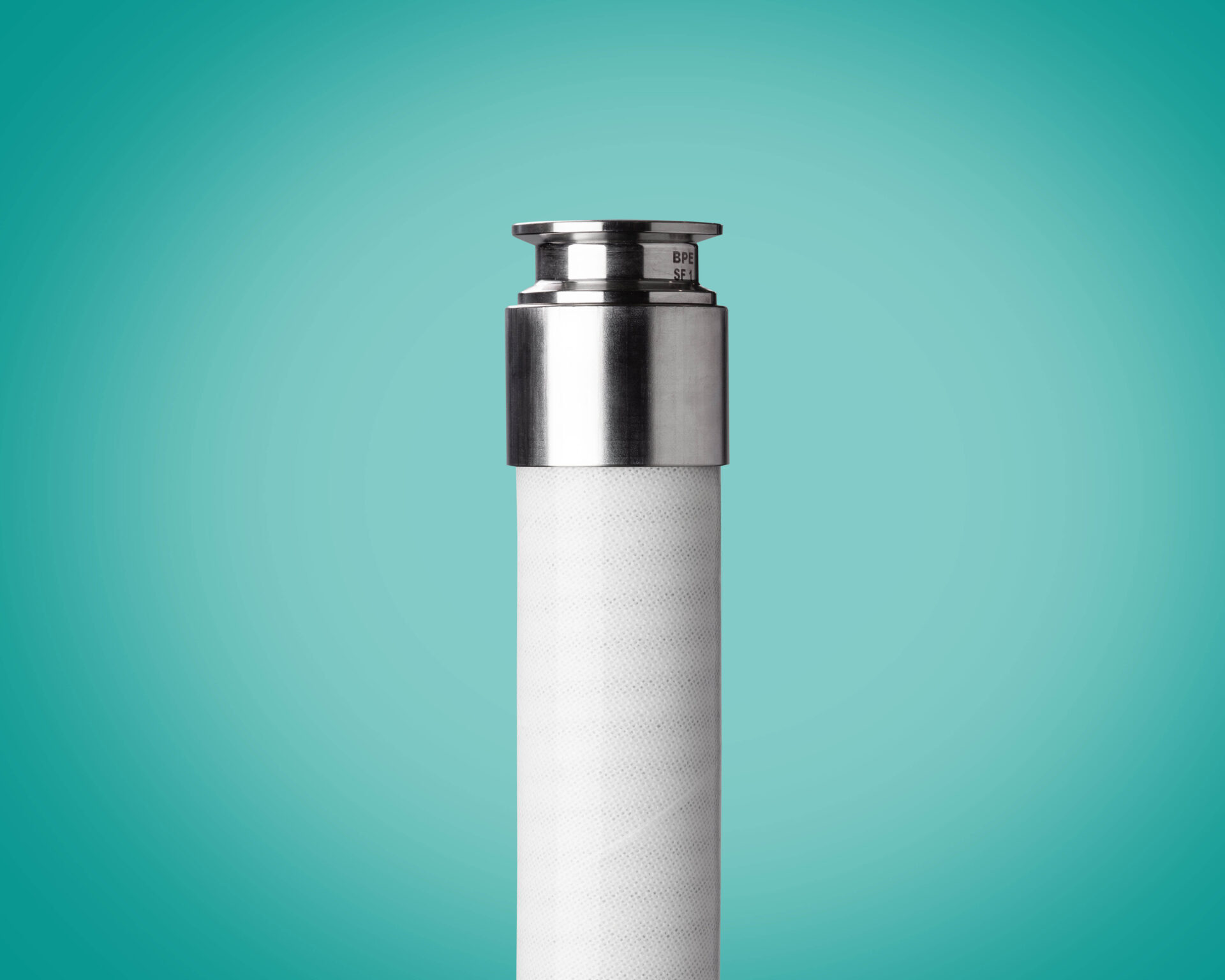

Request Validation PackageThe AdvantaSil® APSW-SP silicone suction hose is a high-quality, single-ply wire-reinforced hose designed for critical applications in the biopharmaceutical and pharmaceutical industries. Known for its durability and purity, the APSW-SP hose is engineered to handle a variety of demanding processes while ensuring the highest standards of cleanliness and safety.
The AdvantaSil APSW-SPC 4-ply silicone suction hose is manufactured utilizing a mandrel-wrapping process, integrating a polyester mesh fabric, 302/304 stainless steel reinforcing wire helix, and additional silicone to form a wire-reinforced, mandrel-wrapped hose. Through a curing process, the hose attains homogeneity, enhancing its pressure and vacuum capabilities, and delivering exceptional resistance to pressure and vacuum
- Available with a smooth O.D. or, for easier bending, convoluted O.D
- Mandrel wrapped with wire reinforcement for higher pressure and vacuum rating
- Crush and kink resistant; durable and heavy duty
- Available as full hose assemblies with crimped fittings
- Custom lengths (up to 12 feet / 3.65 meters) available
- Security of supply chain with redundant manufacturing sites
- Available in sizes up to 4″ I.D.
- Comprehensive validation package to expedite qualification and validation.
| ASTM Method | Value | |
| Durometer, Shore A | D2240 | 70 |
| Specific Gravity | D792 | 1.22 |
| Ultimate Tensile Strength, psi (MPa) | D412 | 1320 |
| Ultimate Elongation, % | D412 | 630 |
| Tensile Modulus @100%, psi (MPa) | D412 | 500 |
| Tear Strength, Die B, ppi (kN/M) | D624 | 320 |
| Compression Set, % | D395B | 20 |
NOTE: Testing based on liner only.
| Acids, Dilute / Weak | Test Before Using |
| Acids, Strong / Concentrated | Test Before Using |
| Bases, Dilute / Weak | Acceptable |
| Bases, Strong / Concentrated | Test Before Using |
| Salts | Acceptable |
| High Purity Water | Acceptable |
| Oil/Water Emulsion | Test Before Using |
| Alcohol | Test Before Using |
| Organic Solvent | Not Recommend |
Available with validated sterility assurance of 10-6 via gamma irradiation per ISO 11137 method VDmax 25. A full sterility validation guide is available upon request.
NOTE: Testing based on liner only
| Autoclave | One-time cycle at 121°C, 30 min |
| Gamma Irradiation | One-time up to 40 kGy |
WARNING: APSW silicone hose should not be utilized in
hot oil or acid applications
- USP <665> Extractables/Leachables
- USP <87> Cytotoxicity MEM Elution
- USP <88> Class VI
- USP <85> Bacterial Endotoxin
- European Pharmacopeia 3.1.9
- ISO 10993-5 (Cytotoxicity, In Vitro)
- RoHS Compliant
- ADCF Compliant
Review the Regulatory Overview chart
NOTE: Testing based on liner only.
Options & Sizes
APSW-SP – SMOOTH O.D., SPIRAL WRAPPED
| Part Number | Catalog Number | I.D. | O.D. (reference) | Working Pressure at 70°F (21.1°C) | Burst Pressure at 70°F (21.1°C) | Bend Radius | Vacuum Capability | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | PSI | Bar | PSI | Bar | in | mm | in.Hg | ||
| A7180018-12 | APSW-SP-0500 | 0.500 | 12.70 | 0.910 | 23.11 | 380 | 26.2 | 1520 | 104.8 | 1.0 | 25.4 | >29 |
| A7180057-12 | APSW-SP-0750 | 0.750 | 19.05 | 1.16 | 29.46 | 315 | 21.7 | 1260 | 86.9 | 1.5 | 38.1 | >29 |
| A7180096-12 | APSW-SP-1000 | 1.000 | 25.40 | 1.41 | 35.81 | 250 | 17.2 | 1000 | 68.9 | 2.5 | 63.5 | >29 |
| A7180135-12 | APSW-SP-1500 | 1.500 | 38.10 | 1.91 | 48.51 | 250 | 17.2 | 1000 | 68.9 | 4.0 | 101.6 | >29 |
| A7180174-12 | APSW-SP-2000 | 2.000 | 50.80 | 2.41 | 61.21 | 205 | 14.1 | 820 | 56.5 | 6.0 | 152.4 | >29 |
| A7180213-12 | APSW-SP-2500 | 2.500 | 63.50 | 2.91 | 73.91 | 185 | 12.8 | 740 | 51.0 | 10.5 | 266.7 | >29 |
| A7180249-12 | APSW-SP-3000 | 3.000 | 76.20 | 3.41 | 86.61 | 190 | 13.1 | 760 | 52.4 | N/A | N/A | >29 |
| A7180285-12 | APSW-SP-4000 | 4.000 | 101.60 | 4.41 | 112.01 | 140 | 9.7 | 560 | 38.6 | N/A | N/A | >29 |
APSW-SPC – CONVOLUTED O.D., SPIRAL WRAPPED
| Part Number | Catalog Number | I.D. | O.D. (reference) | Working Pressure at 70°F (21.1°C) | Burst Pressure at 70°F (21.1°C) | Bend Radius | Vacuum Capability | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | PSI | Bar | PSI | Bar | in | mm | in.Hg | ||
| A7190024-12 | APSW-SPC-0500 | 0.500 | 12.70 | 0.950 | 24.13 | 400 | 27.6 | 1600 | 110.3 | 1.0 | 25.4 | >29 |
| A7190048-12 | APSW-SPC-0750 | 0.750 | 19.05 | 1.20 | 30.48 | 338 | 23.3 | 1350 | 93.1 | 1.5 | 38.1 | >29 |
| A7190072-12 | APSW-SPC-1000 | 1.000 | 25.40 | 1.45 | 36.83 | 288 | 19.9 | 1150 | 79.3 | 2.5 | 63.5 | >29 |
| A7190096-12 | APSW-SPC-1500 | 1.500 | 38.10 | 1.95 | 49.53 | 250 | 17.2 | 1000 | 68.9 | 4.0 | 101.6 | >29 |
| A7190120-12 | APSW-SPC-2000 | 2.000 | 50.80 | 2.45 | 62.23 | 205 | 14.1 | 820 | 56.5 | 6.0 | 152.4 | >29 |
NOTE: Not all standard part numbers are stocked items. For the up-to-date list of stocked sizes and lengths available, please contact your sales representative.
Custom lengths are available by special order. Working pressures are calculated from burst testing using a 3:1 safety factor. Application testing is recommended. Contact your AdvantaPure sales representative for packaging options.
NOTE: The data listed throughout this datasheet is meant only as a guide to aid in the design and is believed to be reliable; however, nothing stated shall constitute a guarantee or warranty for any application. Product field testing should be performed to find the actual values for a specific application
